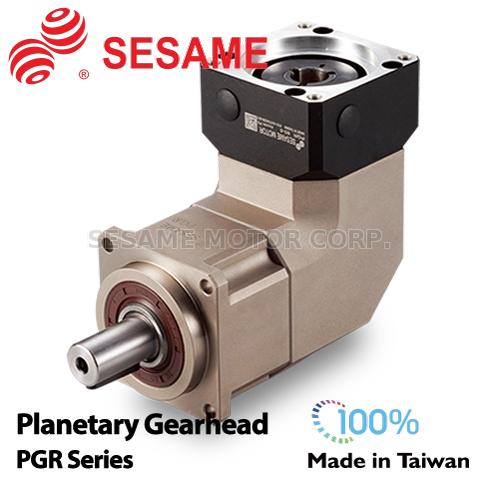

PGR series right angle planetary gearhead overall designs are suitable for combination operation with servo motor in high-speed input and achieve maximum torque output. Right angular design drastically reduces installation space. Precision gear design and gear processing create a planetary gearhead with low backlash operation, low noise, high efficiency and long service life performances.
Features:
- 3 levels of backlash, 5 frame sizes from 42-142 mm
- Premium and precision gear design, ratios from 3-100:1
- One-piece planet carrier/output shaft, high rigidity and radial load capacity
- Hardened and ground gearing, high wear resistance and impact toughness
- One-piece ring gear/housing, high precision and torque output
- Planets with full needle bearing support
- IP65 enclosure and synthetic lubricant, maintenance-free service life

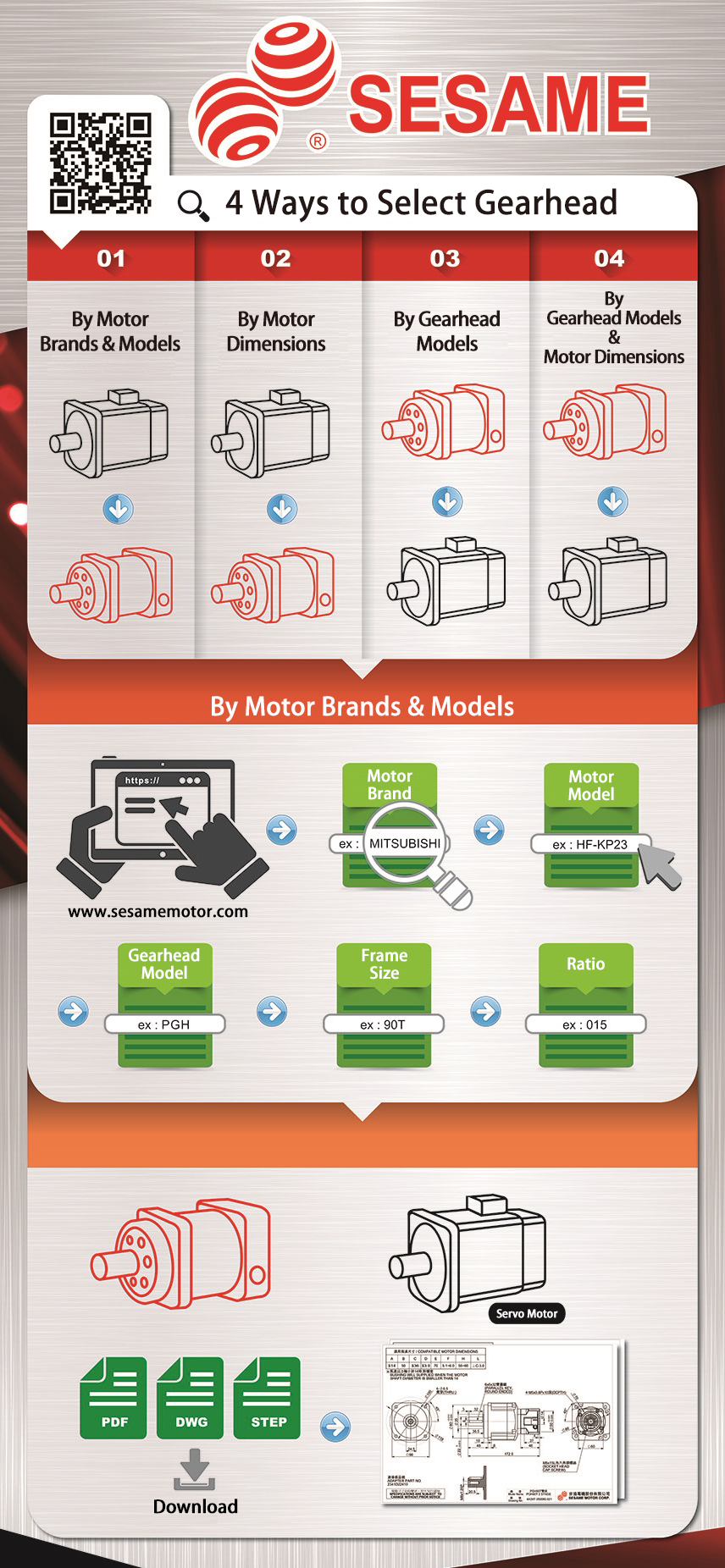

Planetary Gearhead Online Select Tool
Online selection tool is available to configure and draw SESAME planetary gearhead. Please click here.
