The separated type variable speed gear motor features easy wiring and speed control, each with a speed controller. The package provide easy installation and wide range of variable speeds, with high reliability. Circuits, capacitor and variable resistor are installed in controller. Ready-to-use once power is supplied.
- 6 W (1/125 HP) ~ 90 W (1/8 HP), uni-direction
- Easy wiring and speed control
- Wide range of variable speed
- Built-in electronic brake circuits for instant braking (SS31-HR & SS32-HR controller)
- Compact and cost effective
- Gear ratio 3-180:1
Applications: Machine Tool Accessories, Cutting Equipment, Bar Feeder, Conveyor Equipment, Packaging Machinery, Food Processing Machinery, Printing Machine, Agricultural Machinery, Medical Equipment...etc.
Speed-Torque Curve
90W Specification
| Model | Rated
Time
(min) | Rated
Output
(W) | Voltage
(V) | Freq.
(Hz) | Pole
(P) | Current
(A) | Adjustable Range
(rpm) | Starting
Torque
(kg.cm) | Max. Torque/
Pre-set RPM
(kg.cm) | Capacitor |
| 1200rpm | 90rpm | Capacity
(μF) | Withstand
Voltage
(VAC) |
| 5IK90RGX-AF | Continuous | 90 | 100/110 | 50/60 | 4 | 1.5/1.41 | 90~1400/90~1700 | 4.76/5.86 | 8.4/10.2 | 5/6.1 | 22 | 250 |
| 5IK90RGX-CF | 200/220 | 50/60 | 0.76/0.72 | 90~1400/90~1700 | 4.3/4.21 | 8/8.7 | 4.4/4.4 | 5 | 450 |
| 5IK90RGX-CEF | 230/240 | 50 | 0.66/0.68 | 90~1400 | 4.93/5.08 | 9.8/10.2 | 5.2/5.6 | 5 | 450 |
Speed Reducer (Gearhead) Specification, 5GX*KB (*=ratio)

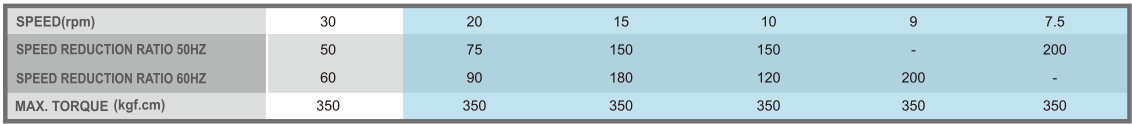

Speed Reducer (Gearhead) Specification, 5GX*KBH (*=ratio, high torque)
