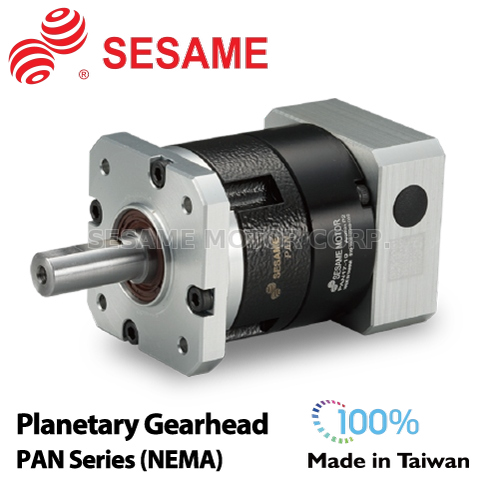

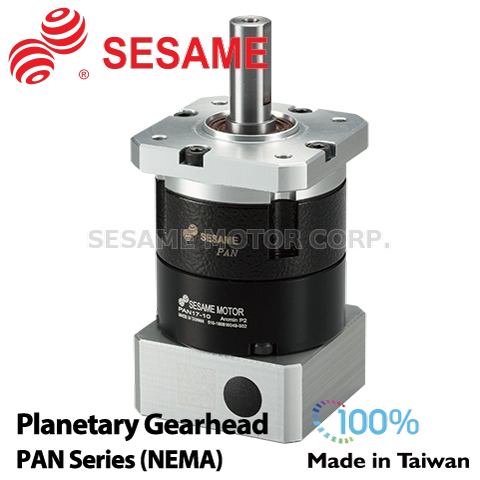

The PAN Standard Series gearboxes are equipped with a NEMA output flange with metric shaft, to offer exceptional torque ratings and capacity for many of present servo and stepper motion control applications. The gearboxes are drop-ins for most industry standards and available from single to three stages with ratios 3:1 up to 1000:1, the best backlash of <6 arc-minutes. Adapters for all servo and stepper motors.
Features:
- 5 frame sizes with NEMA 17, 23, 34, 42, 56 flange and metric shaft
- Backlash as low as 6 arc-minutes
- Ratios up to 1000:1
- High radial and axial loading capacity
- 20,000 hours service life
- Synthetic grease, maintenance free
- Reliable operating performance, cost effective integration

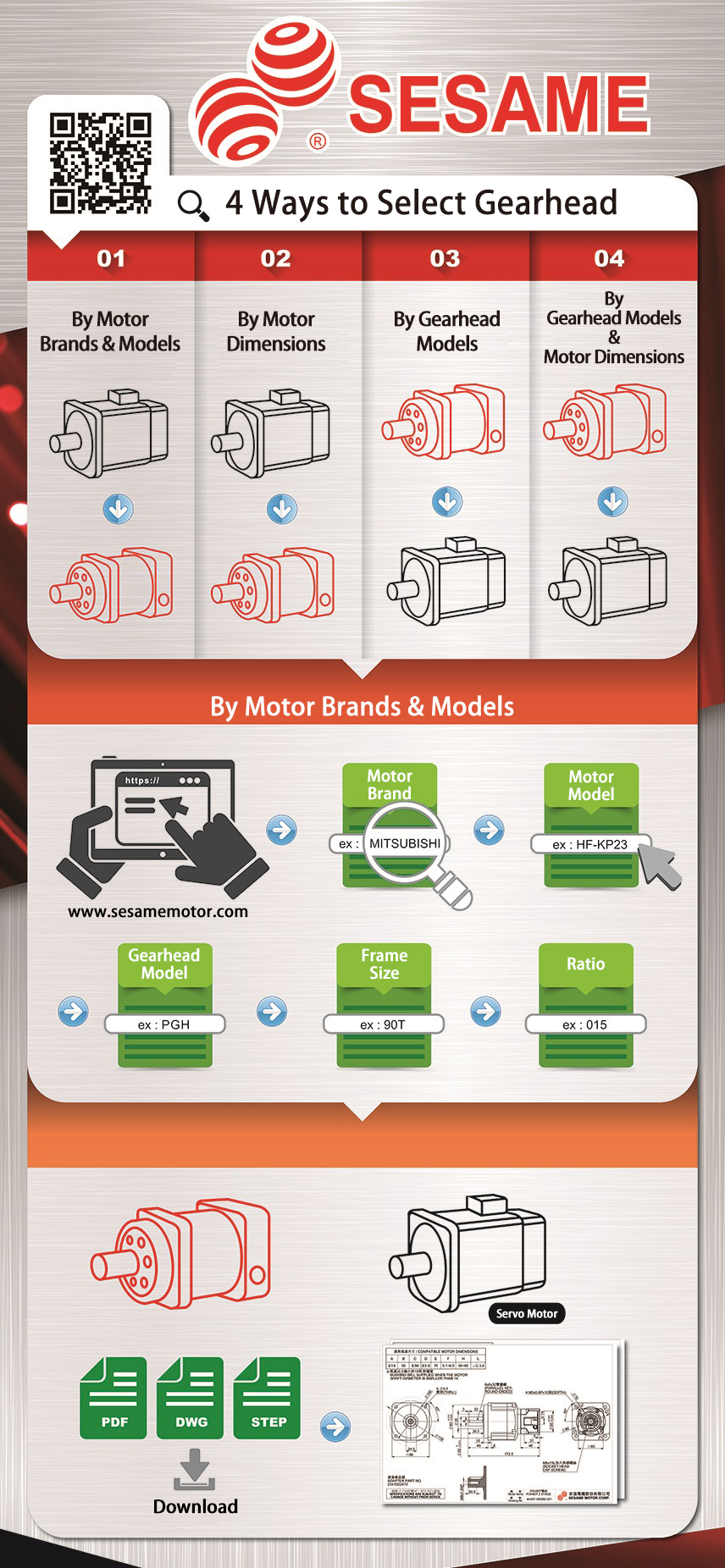

Planetary Gearhead Online Select Tool
Online selection tool is available to configure and draw SESAME planetary gearhead. Please click here.
