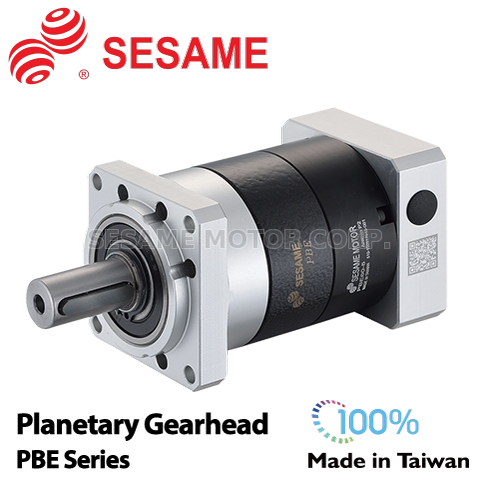

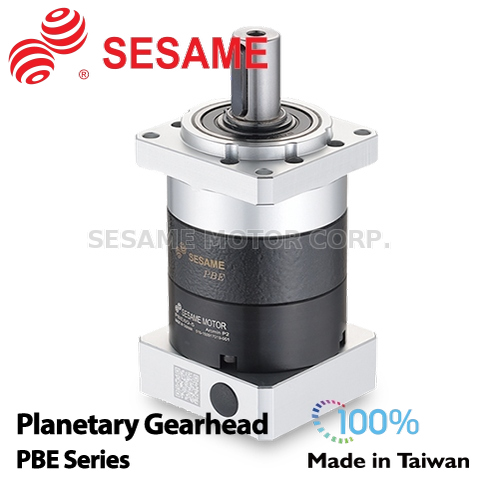

Planetary Gearbox of Servo Motor

Features:

• Inline Configuration
• Output shaft, 12 mm through 22 mm diameter.
• Torque Capacity Range: 4.8 Nm through 58.6 Nm.
• Cantilevered Planet Carrier: with primary planet gear set
• High performance, efficiencies and low acoustics.
• Wide Range of Ratios: 6 single stage, 8 two stage and 8 three stage ratios.
• Output Bearings deliver radial load capacity as high as 1700 N, and axial capacities up to 735 N.
• Square Servo and Step Motor input: accommodates 40 mm through 100 mm, with optional sizes available.
